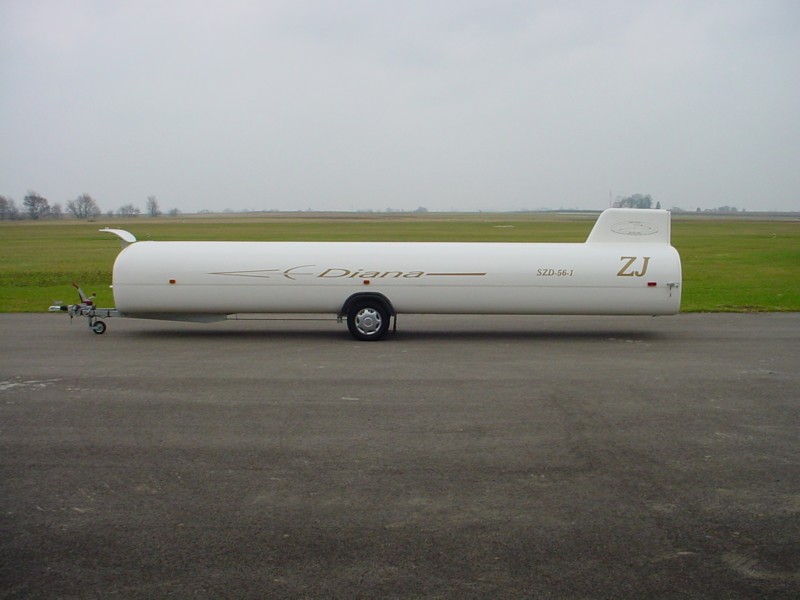

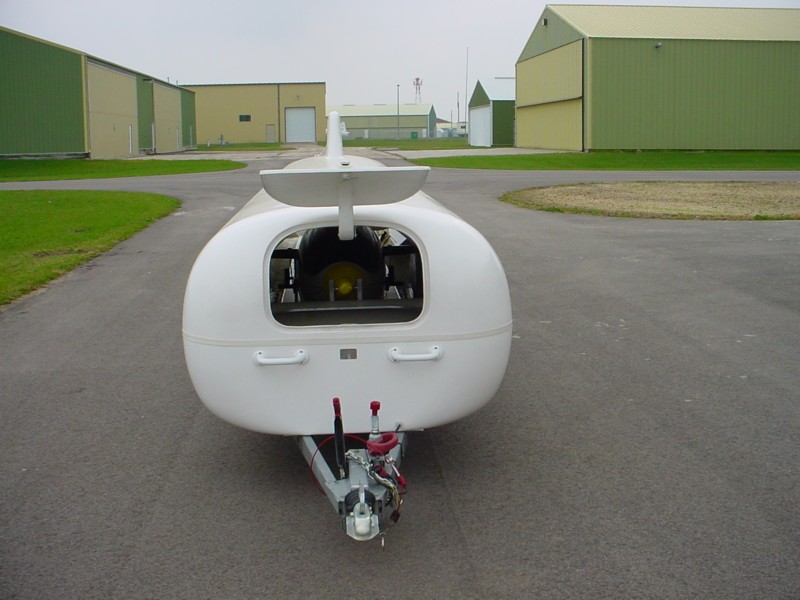

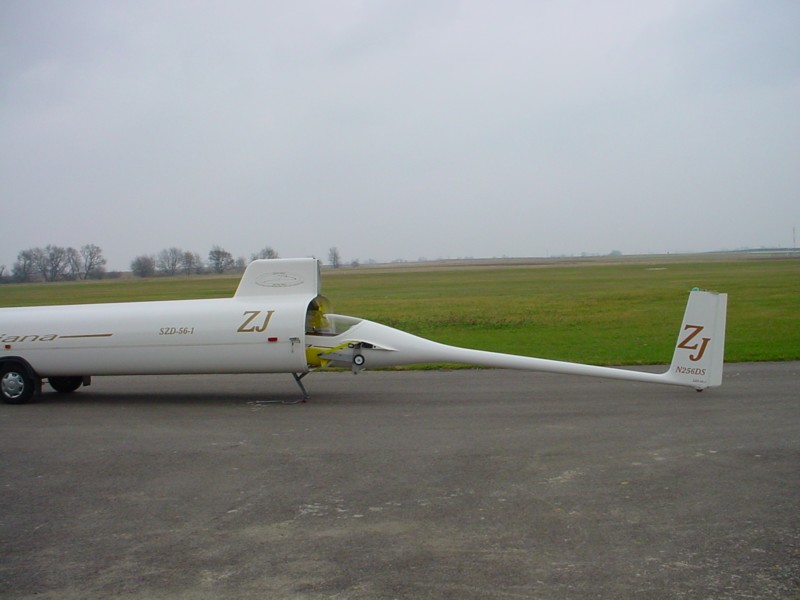

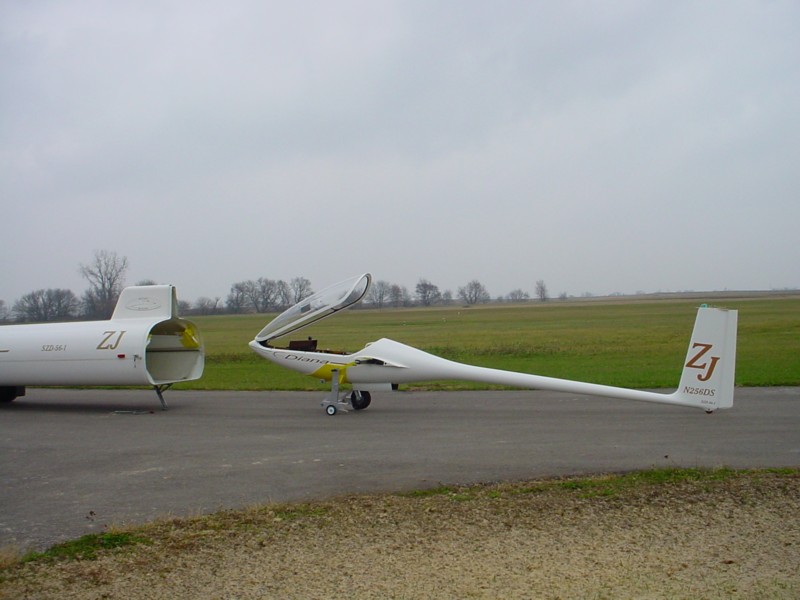

Unconventional arrangement
of "Diana 2" structural design with 1.5 meter spar stump integrated
into fuselage, suggested development of a trailer that would be
adequate for storage and transport of both "Diana 2" as well as any

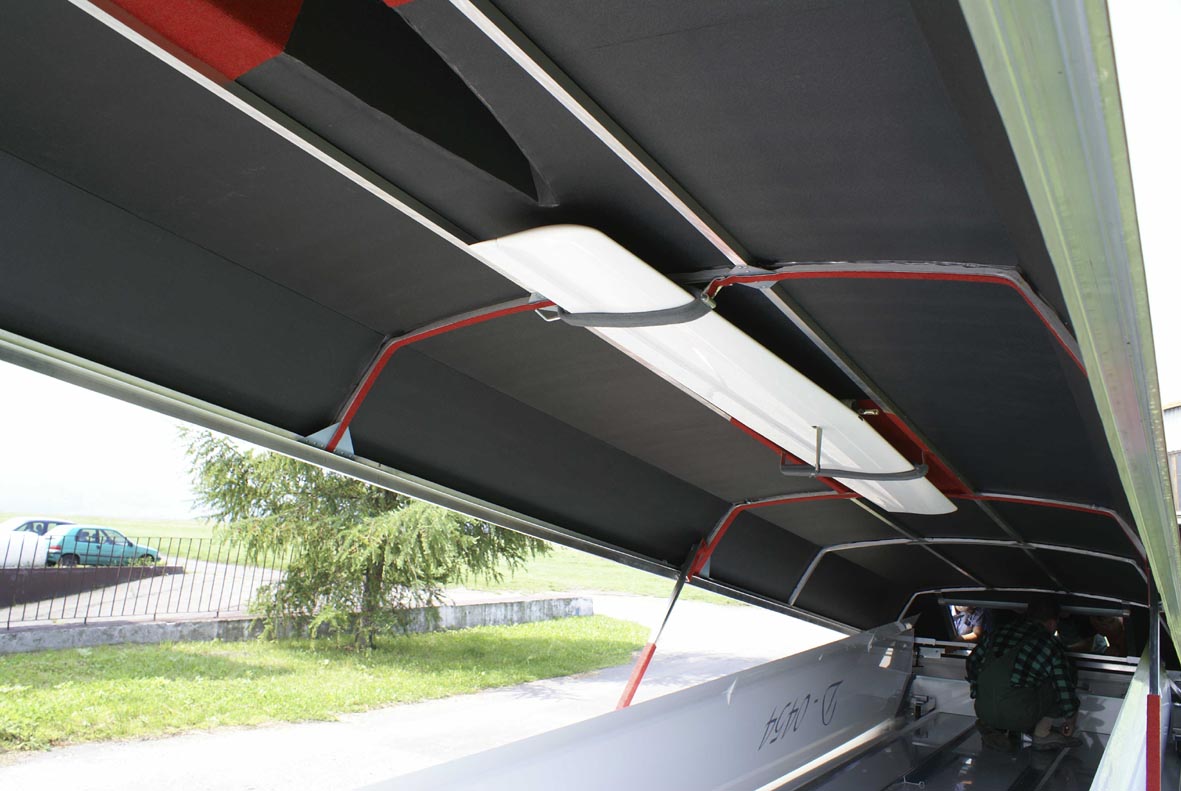

other modern high-performance sailplane. Trailer has a unique
monocoque composite shell. The 15mm thick floor is made from
sandwiched aluminum plate with honeycomb core. The shell is attached
to a chassis from German AL-KO Kober with V-type tow bar and an

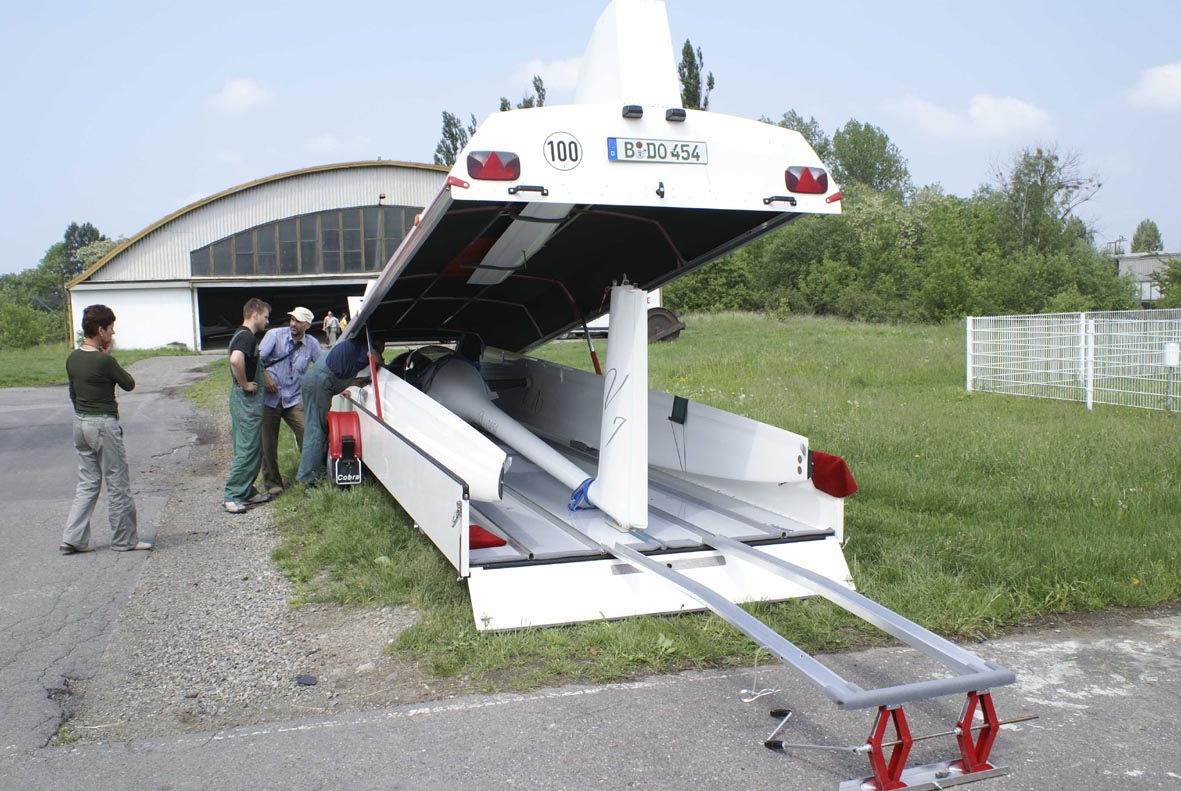

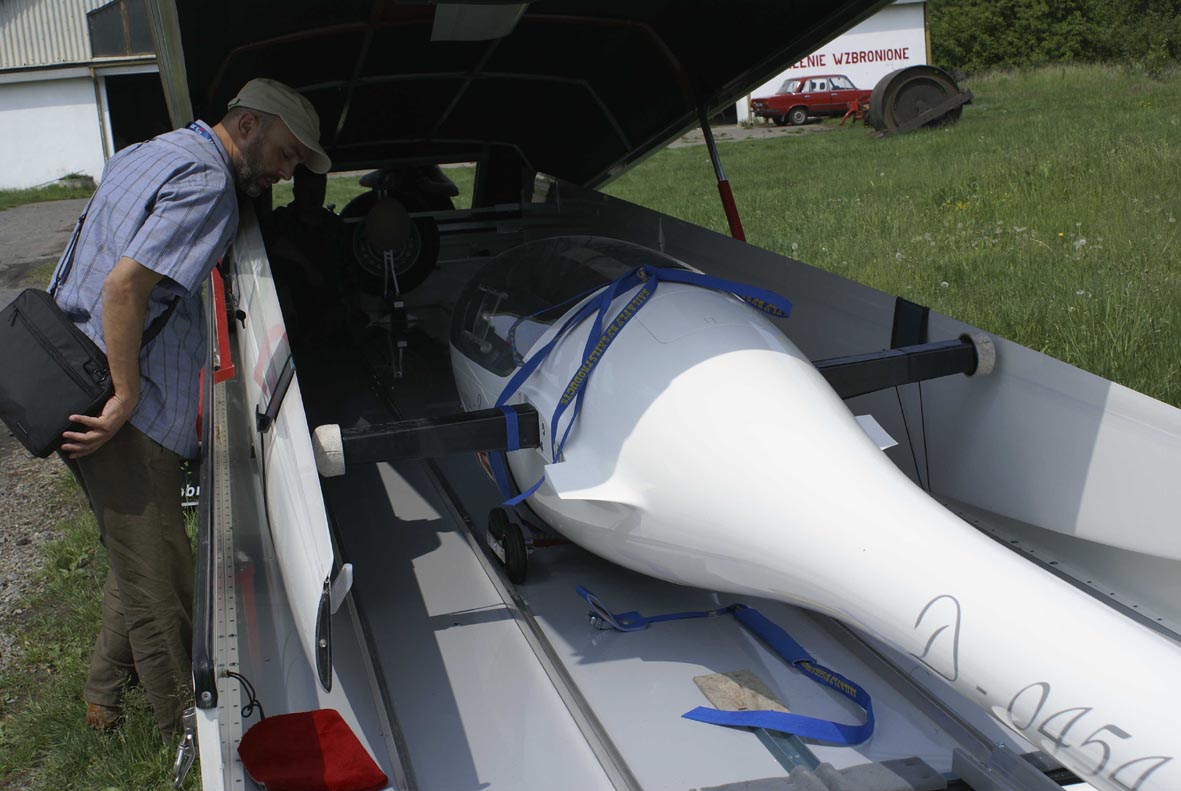

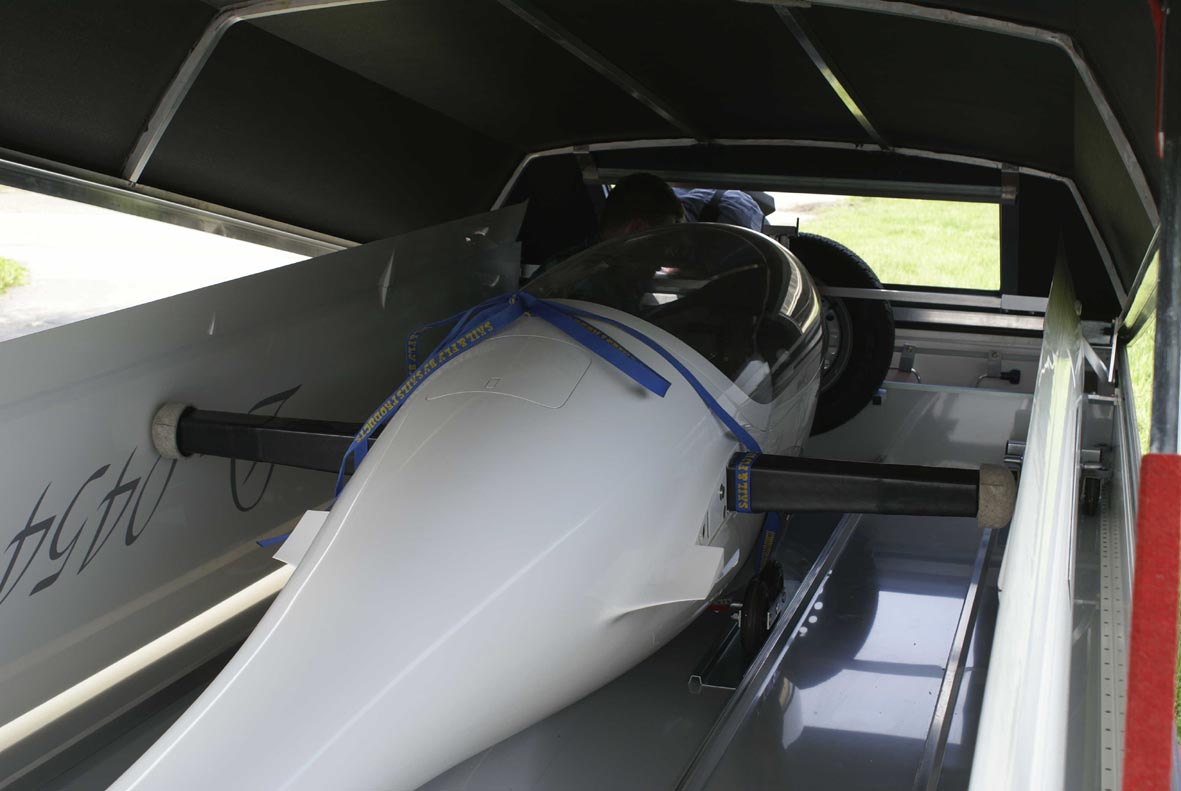

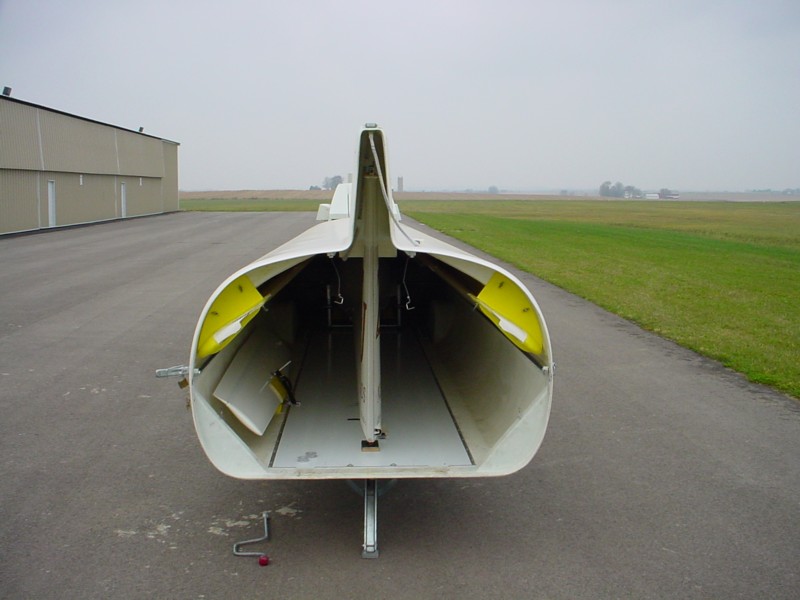

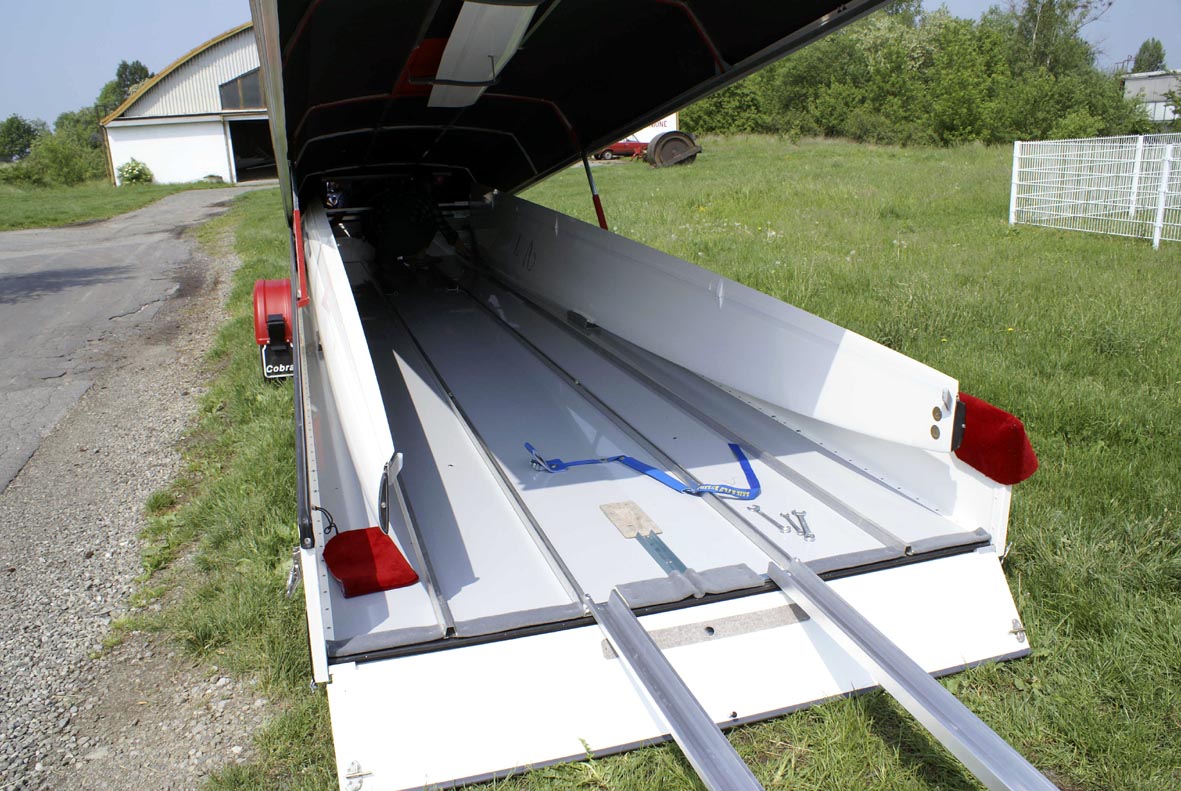

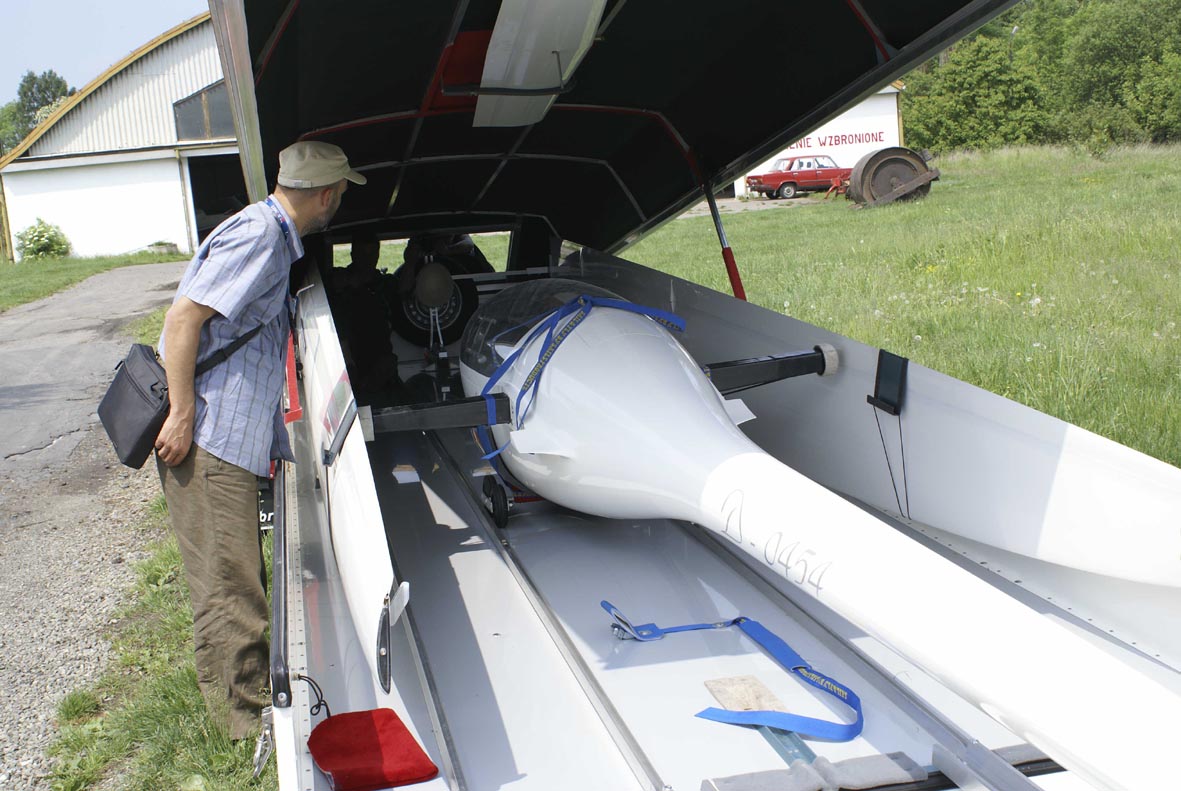

overrunning brake. Wings and fuselage are loaded through opening in

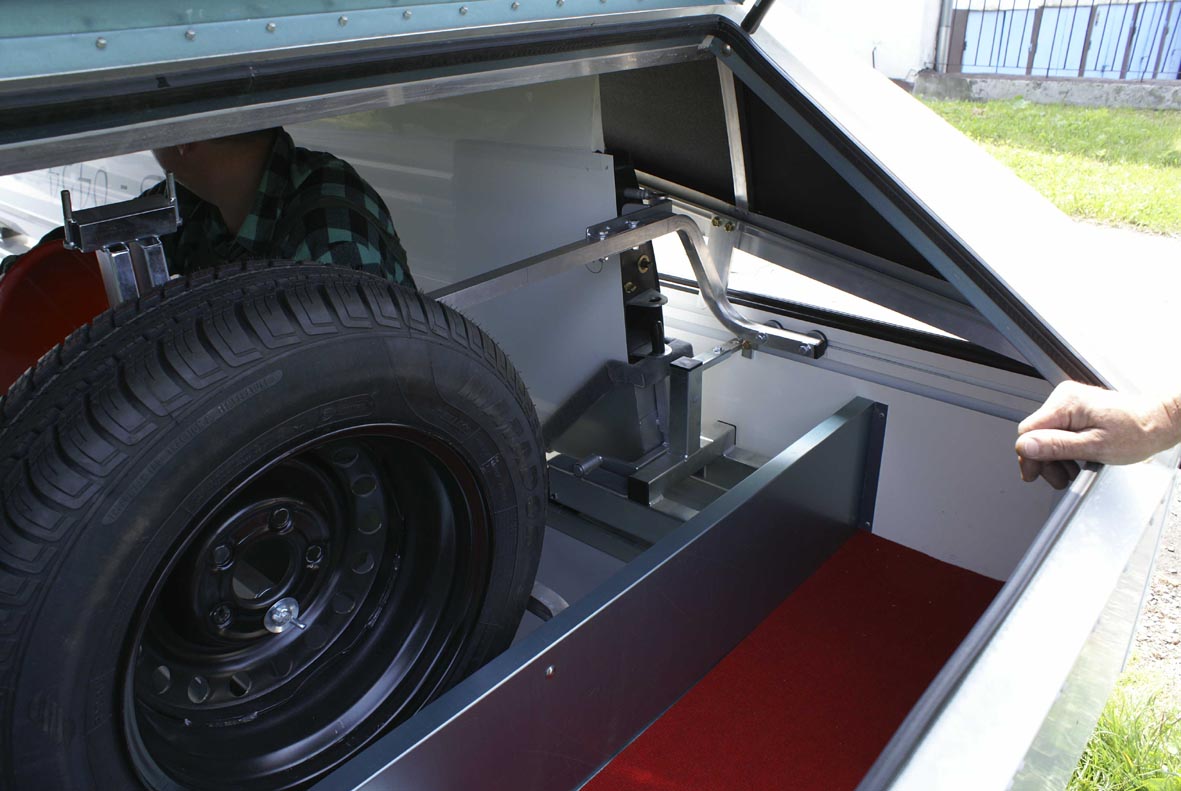

the back of the trailer and guided by set of built-in rails. At the
front of the trailer there is a baggage compartment for stowing all
ground handling equipment and a spare wheel.
![](Diana%20Trailer%209_small.JPG) ![](Diana%20Trailer%201_small.JPG) ![](Diana%20Trailer%203_small.JPG) ![](Diana%20Trailer%204_small.JPG) ![](Diana%20Trailer%205_small.JPG) ![](Diana%20Trailer%208_small.JPG)

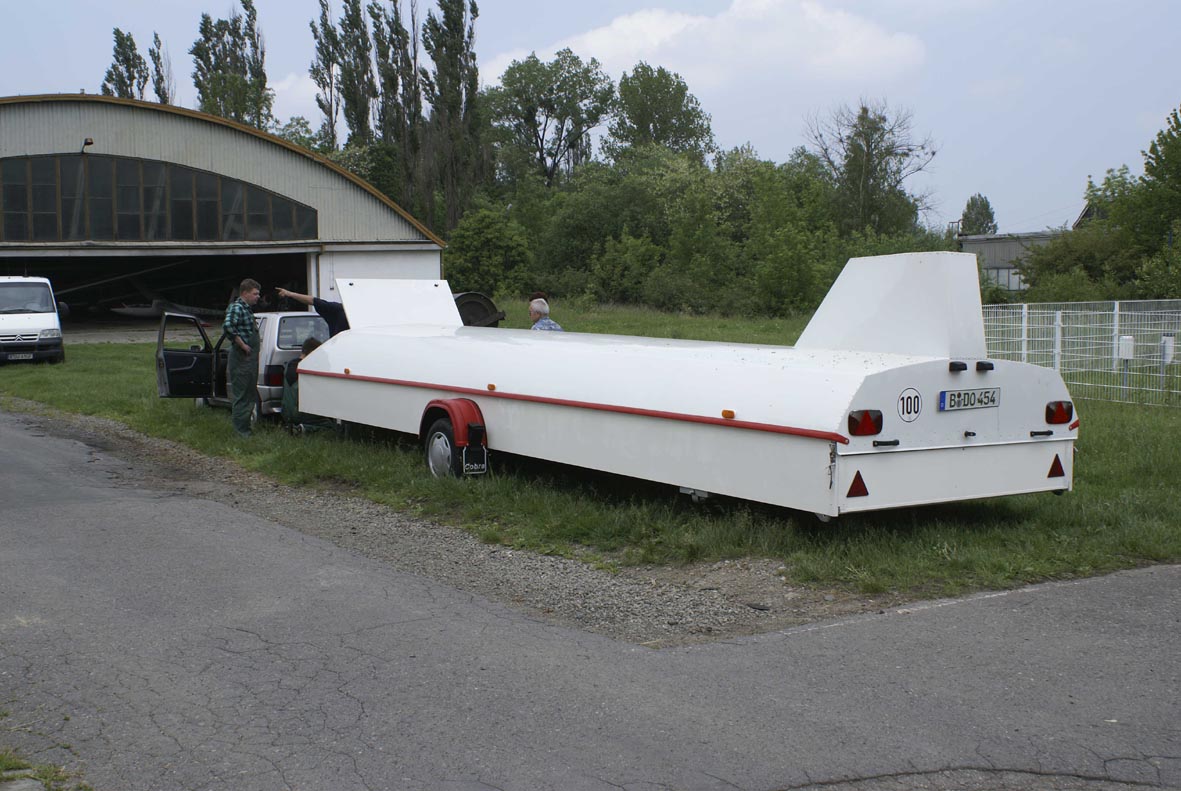

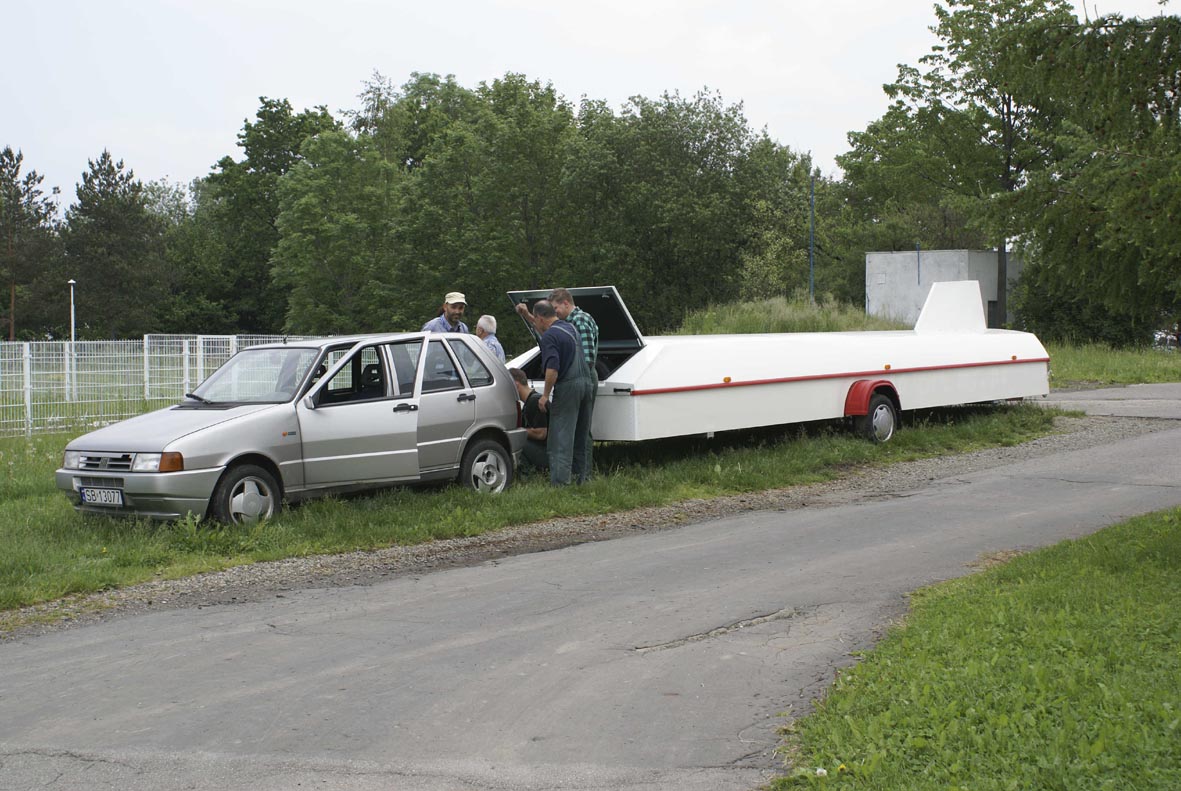

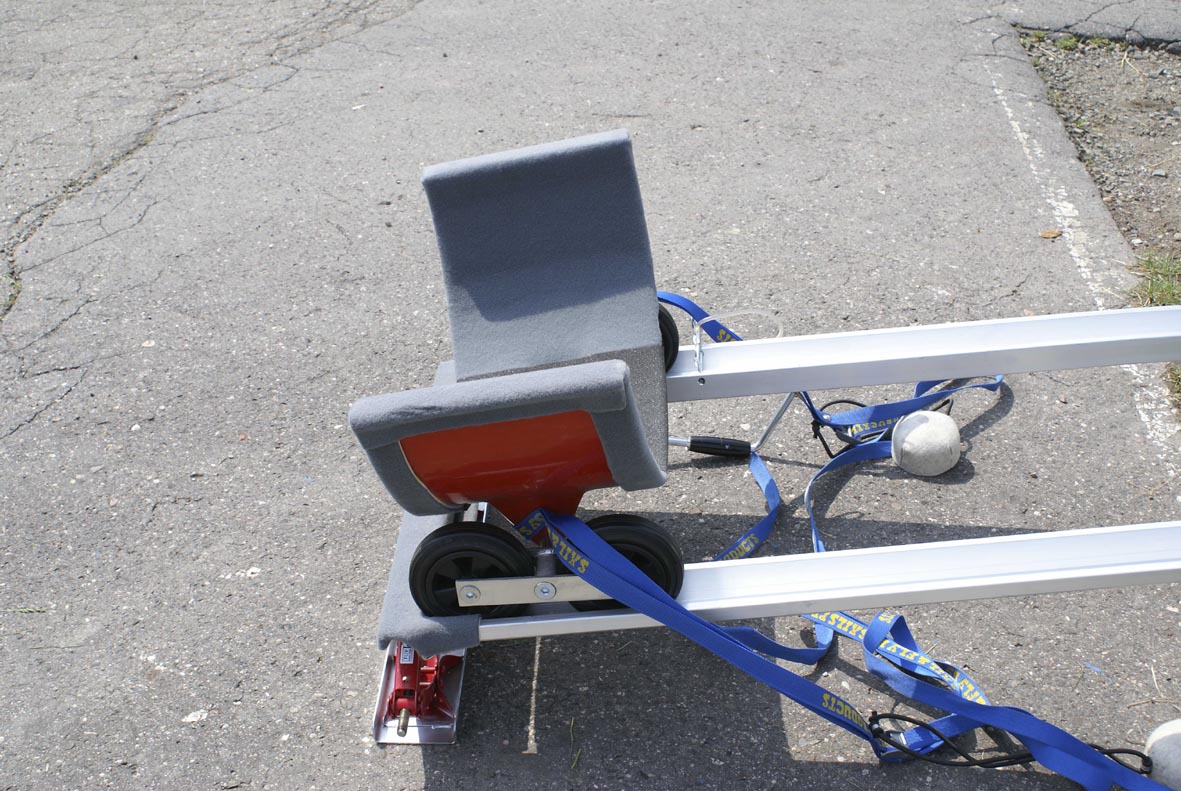

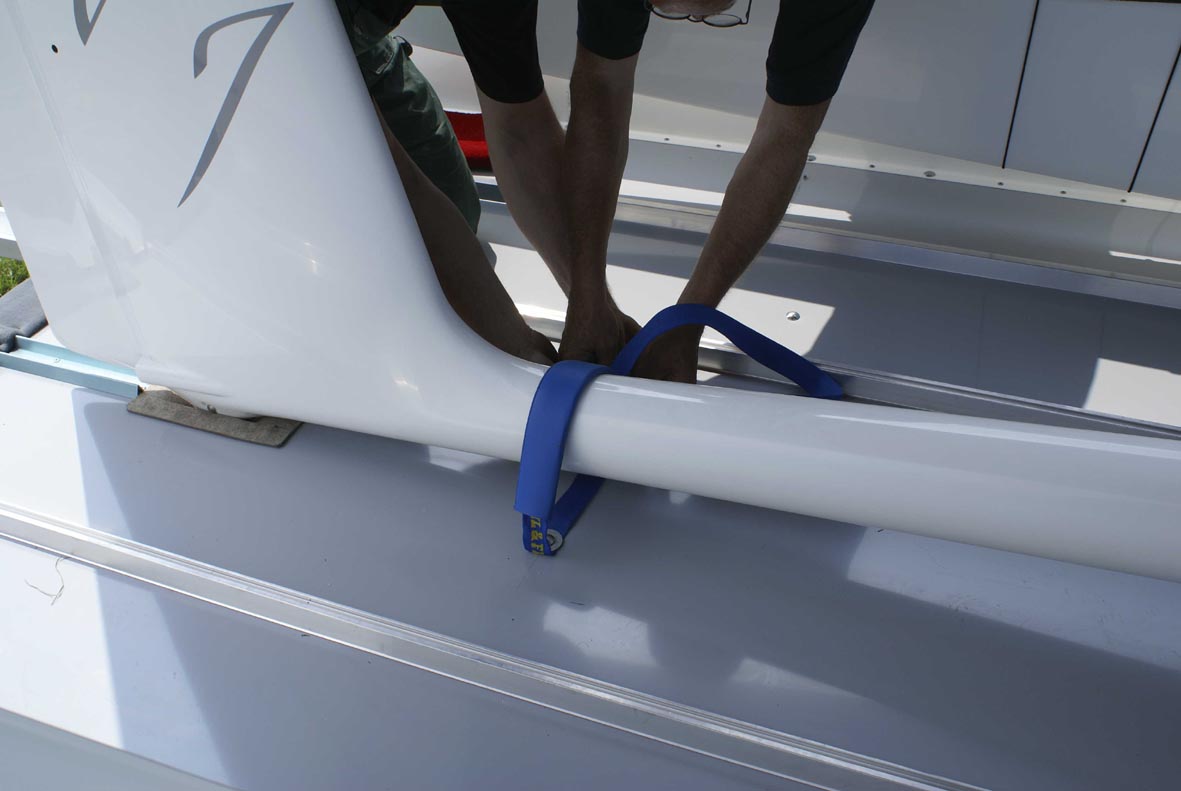

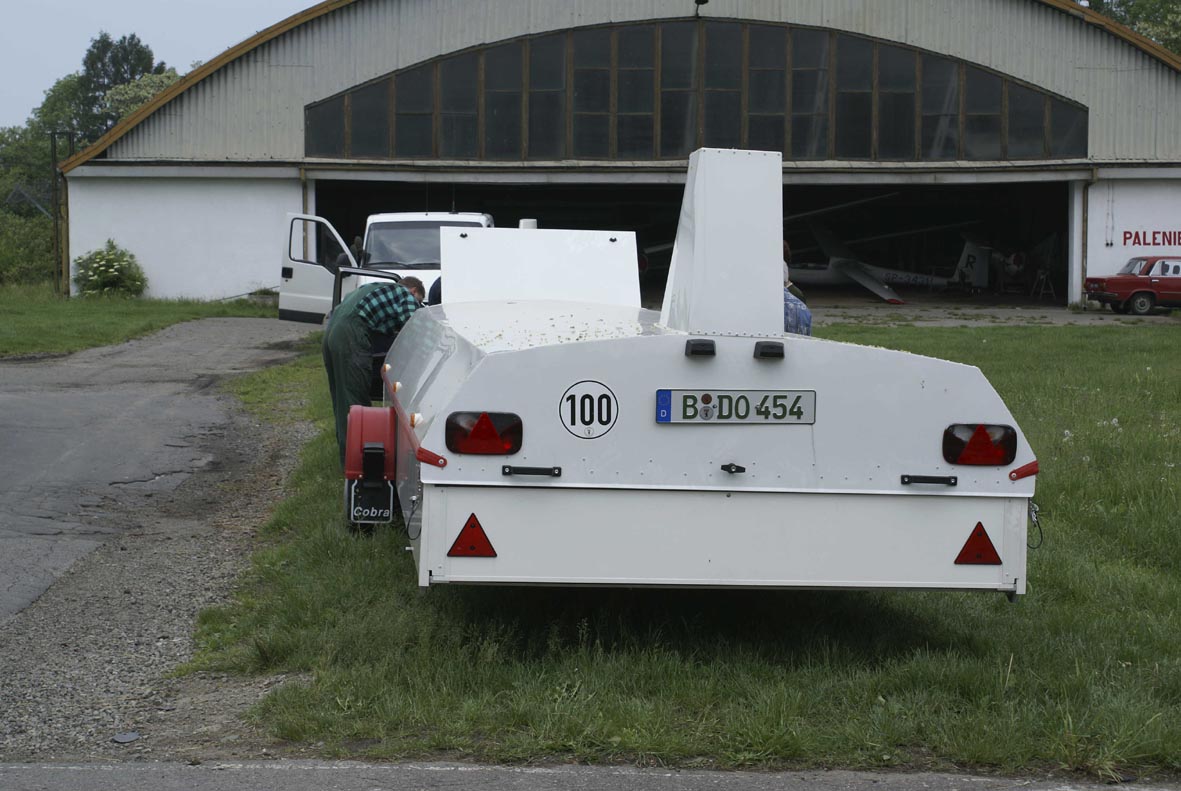

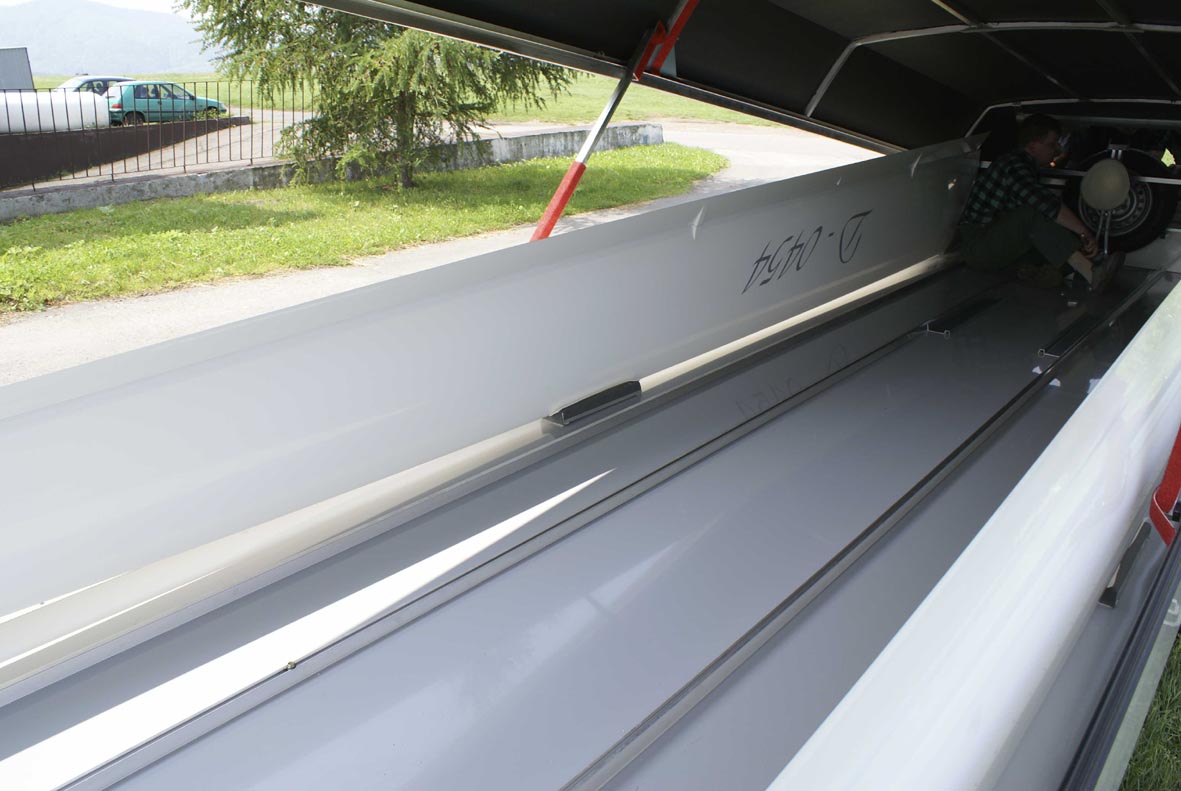

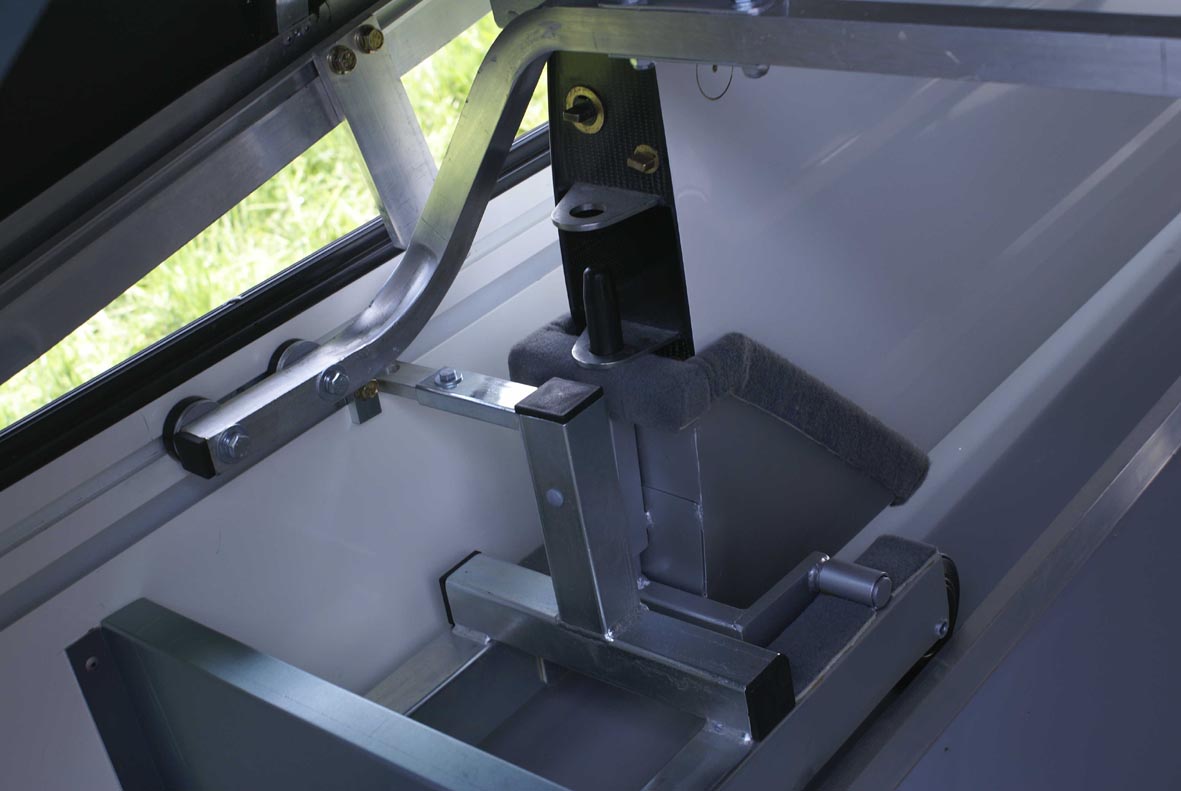

Cobra
trailer for Diana2.
![](DSC00895_small.jpg) ![](DSC00896_small.jpg) ![](DSC00897_small.jpg) ![](DSC00898_small.jpg) ![](DSC00899_small.jpg) ![](DSC00900_small.jpg)
![](DSC00903_small.jpg) ![](DSC00905_small.jpg) ![](DSC00906_small.jpg) ![](DSC00907_small.jpg) ![](DSC00908_small.jpg) ![](DSC00910_small.jpg)
![](DSC00912_small.jpg) ![](DSC00913_small.jpg) ![](DSC00914_small.jpg)
|
